Original Prusa XL 3D Printer - Single, Dual, 5-head Modules Available

Original Prusa XL 3D Printer - Single, Dual, 5-head Modules Available

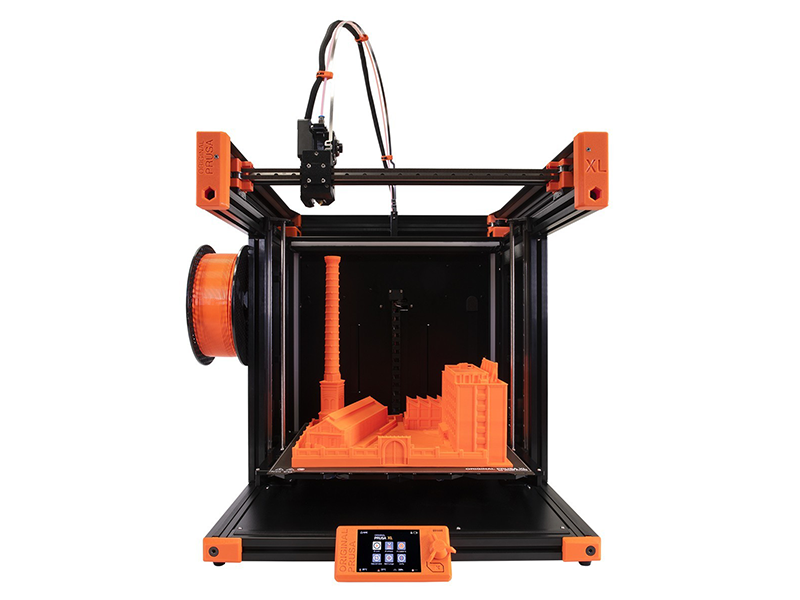

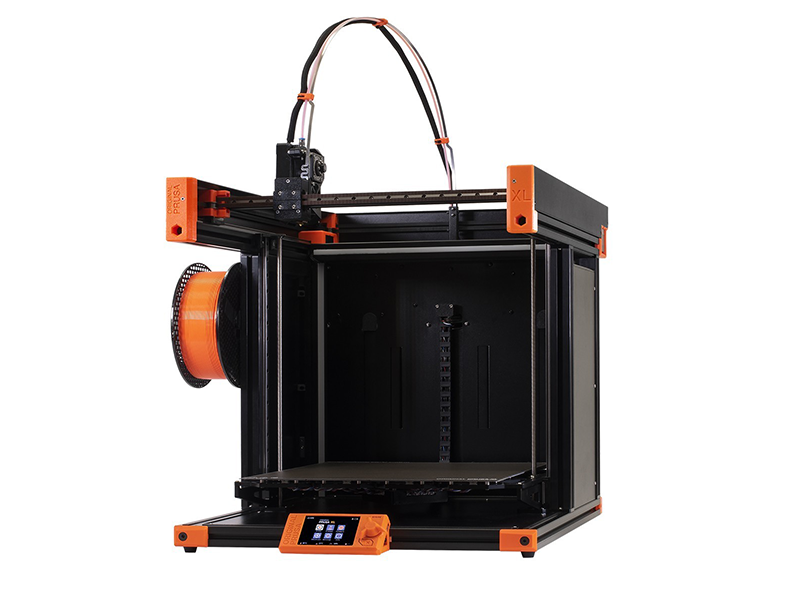

The Original Prusa XL is a large CoreXY 3D printer  with a print volume of up to 36 x 36 x 36 cm. It is equipped with up to 5 independent nozzles. The system sensor can be automatically calibrated, eliminating the need for repeated calibration, making it easy to print a variety of objects. The XL is equipped with the new Nextruder, a completely redesigned extrusion nozzle system with a zero-backlash cycloid gearbox, hot-swappable nozzles and a fully automatic first-layer calibration system, which requires no manual calibration or Z-axis adjustment.

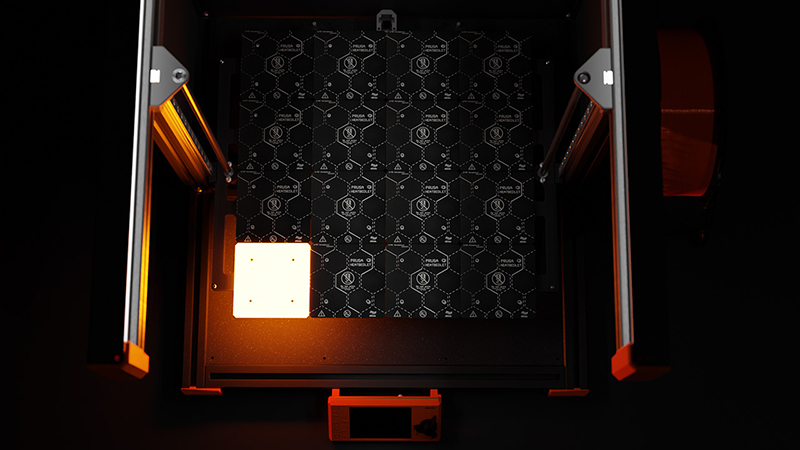

The Prusa XL’s modular heating platform improves print quality by replacing a single large heating platform that is prone to warping with a series of smaller, individually controlled sections. When printing smaller objects, only the necessary parts of the heating platform are activated, making the XL more energy-efficient. Like other Original Prusa 3D printers , it uses the proven double-sided spring steel plate for easy maintenance and removal of printed products.

． Nextruder
Nextruder features built-in electronics with a dedicated CPU and stepper drivers directly in the print head, controlled through a single connector for easy maintenance; fans, thermistors, heating blocks and printhead extruder motors all connect directly to the circuit board inside the print head.

． Auto-calibration
An in-house developed sensor built into the heat sink measures the physical load in the heat sink and probes the print surface with the nozzle; the XL can perform extremely accurate height calculations for the first layer using a load cell system.

． Up to 5 independent print heads
5 independent print heads, and through the system sensor, they can automatically calibrate and replace the print heads with high precision, no longer needing tedious calibration procedures! Easily print water-soluble supports, print in up to five colors, or print on a wider variety of materials.



． The rigid CoreXY structure
Original Prusa XL is a large CoreXY 3D printer with a print volume of up to 36 x 36 x 36 cm. It is equipped with up to 5 independent print heads. The system sensor can be automatically calibrated, eliminating the need for repeated calibration, making it easy to print a variety of objects.


． Power Failure Recovery
XL has a power failure recovery function. If a power failure occurs, XL will record the last extrusion nozzle position. When the power is restored, the machine can resume operation exactly from the interruption point.

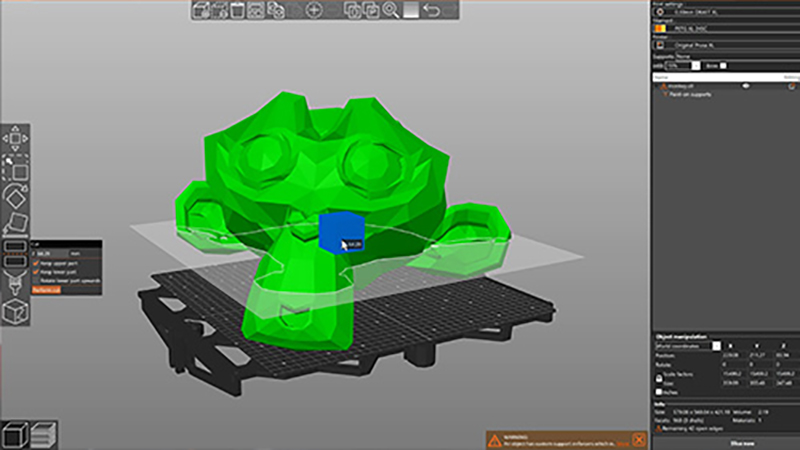

． PrusaSlicer Slicing Software
PrusaSlicer slicing software has built-in tools to support generation, cutting, and automatic distribution, and can instantly convert 3D models into print file formats.
