UltiMaker S7 - 3D Printer

Name: UltiMaker S7 - 3D Printer
Brand: UltiMaker
SKU: 18069709700402889718800390
Availability: SoldOut
Rating: 0 (0 reviews)

The S7 takes everything customers loved about the award-winning UltiMaker S5 and makes it even better. The S7 is packed with our latest technologies, making it easier than ever to 3D print high-quality parts.

$0.00 USD

Home delivery

Shipping from the U.S., fast delivery

Carbon neutral

Secure payments

Product information

Product Introduction

UltiMaker S7 - Industrial 3D Printer
The S7 takes everything customers loved about the award-winning UltiMaker S5 and makes it even better. The S7 is packed with our latest technologies, making it easier than ever to 3D print high-quality parts.

Print Easy, Breathe Comfortably

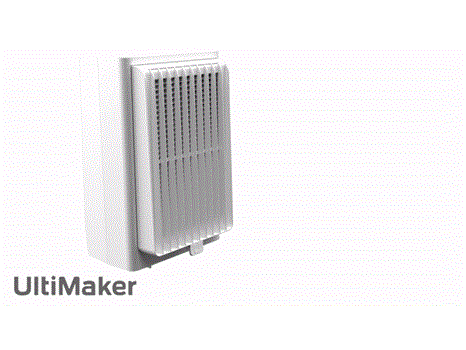

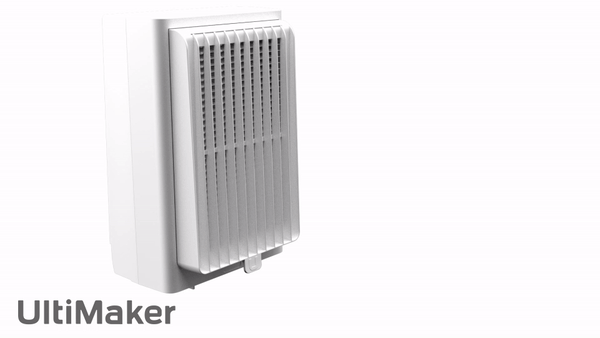

The integrated Air Manager
is independently tested to remove up to 95% of ultrafine particles* from every print. Not only does it improve air quality, giving you peace of mind...but the fully enclosed cabin and single glass door also improve print quality.
*Tested by Fraunhofer WKI. Includes UltiMaker materials only.

Flexible Print PlateThe
flexible print plate coated with PEI allows easy removal of parts without the use of glue. 25 magnets and 4 positioning pins can be perfectly replaced, reducing the time spent using the UltiMaker S7 and increasing production efficiency.

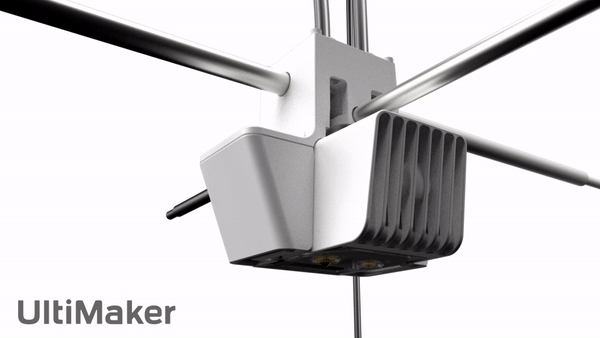

Inductive Base Plate Sensor
The new inductive print head sensor detects the base plate with lower noise and higher accuracy. Automatic tilt compensation eliminates the need for thumbscrew bed calibration.

Product Specifications

Printing Technology	Fused Forming (FFF)
Print volume	330 x 240 x 300 mm
Machine size	495 x 585 x 800mm
Line entry method	Double gear extrusion
touchscreen	4.7-inch (11.9mm) color touch screen
Printing core replacement	Replaceable PrintCore
Nozzle head	Dual extrusion printhead with automatic nozzle lift system, replaceable print core and overlay printhead anomaly detection.
Applicable wire diameter	2.85 mm
Layer Resolution	0.25 mm nozzle: 150 - 60 microns 0.4 mm nozzle: 200 - 20 microns 0.6 mm nozzle: 300 - 20 microns 0.8 mm nozzle: 600 - 20 microns
XYZ resolution	6.9, 6.9, 2.5 μm
Nozzle diameter	0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm
Filtration Technology	Replaceable EPA filter
Pumping rate	1 - 50 m³/h (most materials have a nominal flow rate of 35 m³/h at 23 °C)
Nozzle temperature	180 - 280 °C
Nozzle heating time	< 2 minutes
Operation sound	< 51 dB
Build Plate Leveling	Advanced active leveling with more precise inductive sensors
Base Plate	PEI coated flexible steel baseplate (20 - 140 °C)
Build plate heating time	< 5 minutes (from 20 to 60 °C)
Operating temperature	15 - 32 °C
Non-operating temperature	0 - 32 °C
Free software available	UltiMaker Cura – Printing software UltiMaker Digital Factory – Printer management software
operating system	MacOS, Windows, and Linux
Plugin Integration	SolidWorks, Siemens NX, Autodesk Inventor
File support type	UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE.gz, UFP
weight	29.1 kg
Maximum Power Output	500W
File transfer method	Wi-Fi (2.4 and 5 GHz), Ethernet, USB

Product Introduction
Product Specifications

Printing Technology	Fused Forming (FFF)
Print volume	330 x 240 x 300 mm
Machine size	495 x 585 x 800mm
Line entry method	Double gear extrusion
touchscreen	4.7-inch (11.9mm) color touch screen
Printing core replacement	Replaceable PrintCore
Nozzle head	Dual extrusion printhead with automatic nozzle lift system, replaceable print core and overlay printhead anomaly detection.
Applicable wire diameter	2.85 mm
Layer Resolution	0.25 mm nozzle: 150 - 60 microns 0.4 mm nozzle: 200 - 20 microns 0.6 mm nozzle: 300 - 20 microns 0.8 mm nozzle: 600 - 20 microns
XYZ resolution	6.9, 6.9, 2.5 μm
Nozzle diameter	0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm
Filtration Technology	Replaceable EPA filter
Pumping rate	1 - 50 m³/h (most materials have a nominal flow rate of 35 m³/h at 23 °C)
Nozzle temperature	180 - 280 °C
Nozzle heating time	< 2 minutes
Operation sound	< 51 dB
Build Plate Leveling	Advanced active leveling with more precise inductive sensors
Base Plate	PEI coated flexible steel baseplate (20 - 140 °C)
Build plate heating time	< 5 minutes (from 20 to 60 °C)
Operating temperature	15 - 32 °C
Non-operating temperature	0 - 32 °C
Free software available	UltiMaker Cura – Printing software UltiMaker Digital Factory – Printer management software
operating system	MacOS, Windows, and Linux
Plugin Integration	SolidWorks, Siemens NX, Autodesk Inventor
File support type	UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE.gz, UFP
weight	29.1 kg
Maximum Power Output	500W
File transfer method	Wi-Fi (2.4 and 5 GHz), Ethernet, USB
